Eikona series · Model EK06
Eikona Series – EK06
Smart lock with 3D face recognition and audio and video intercom

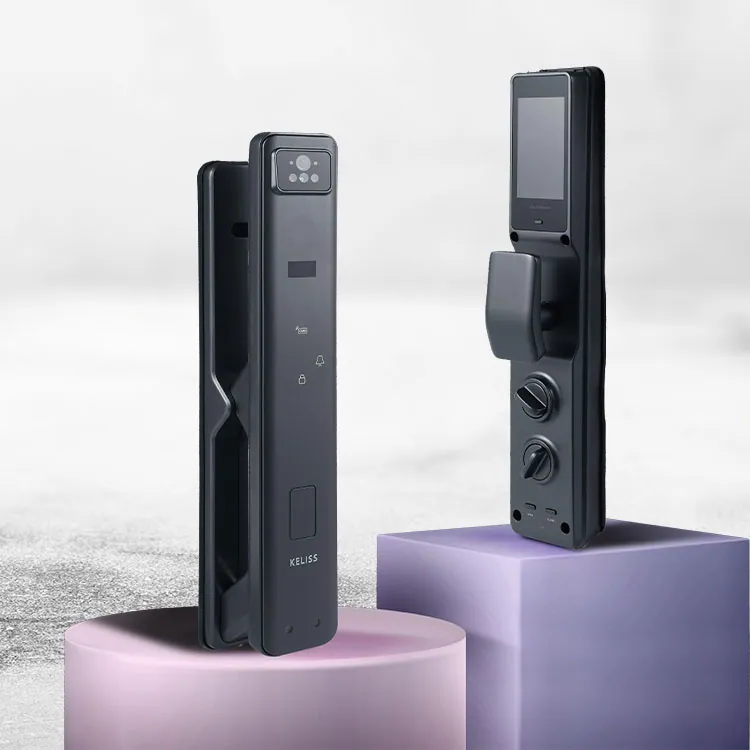

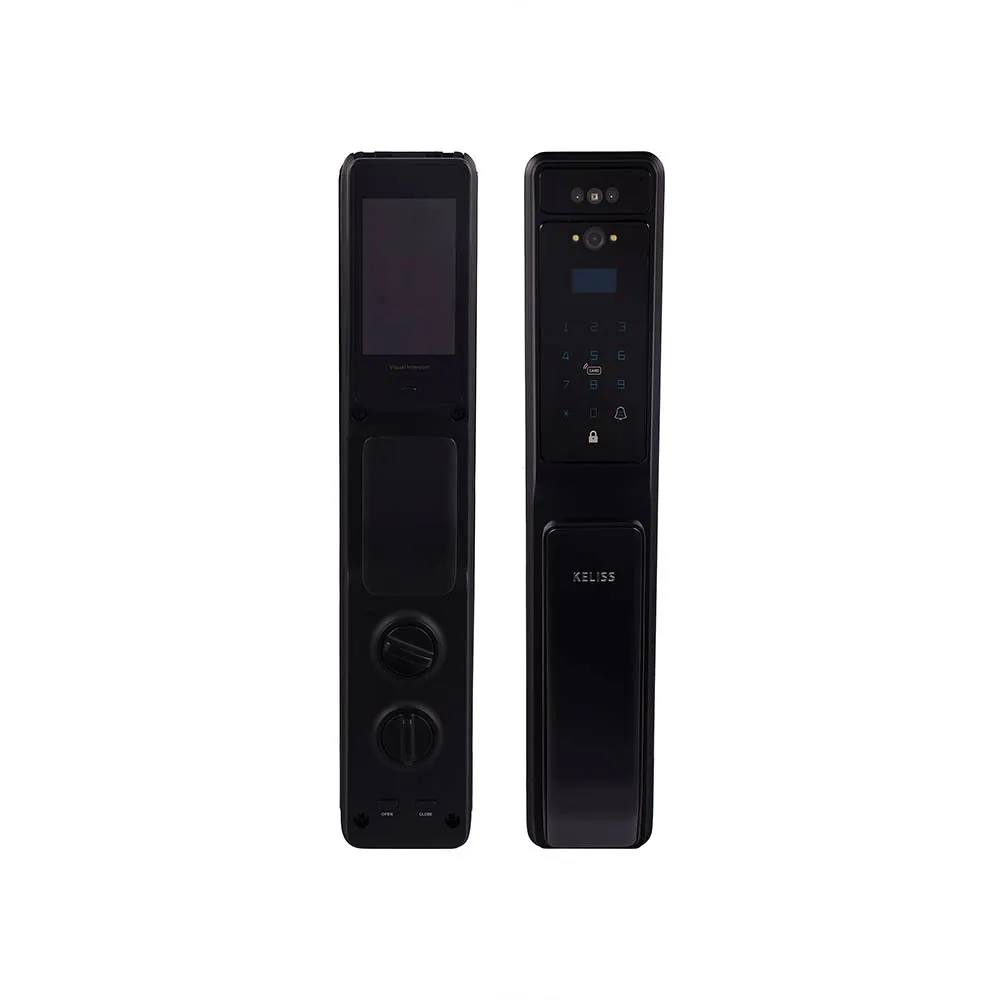

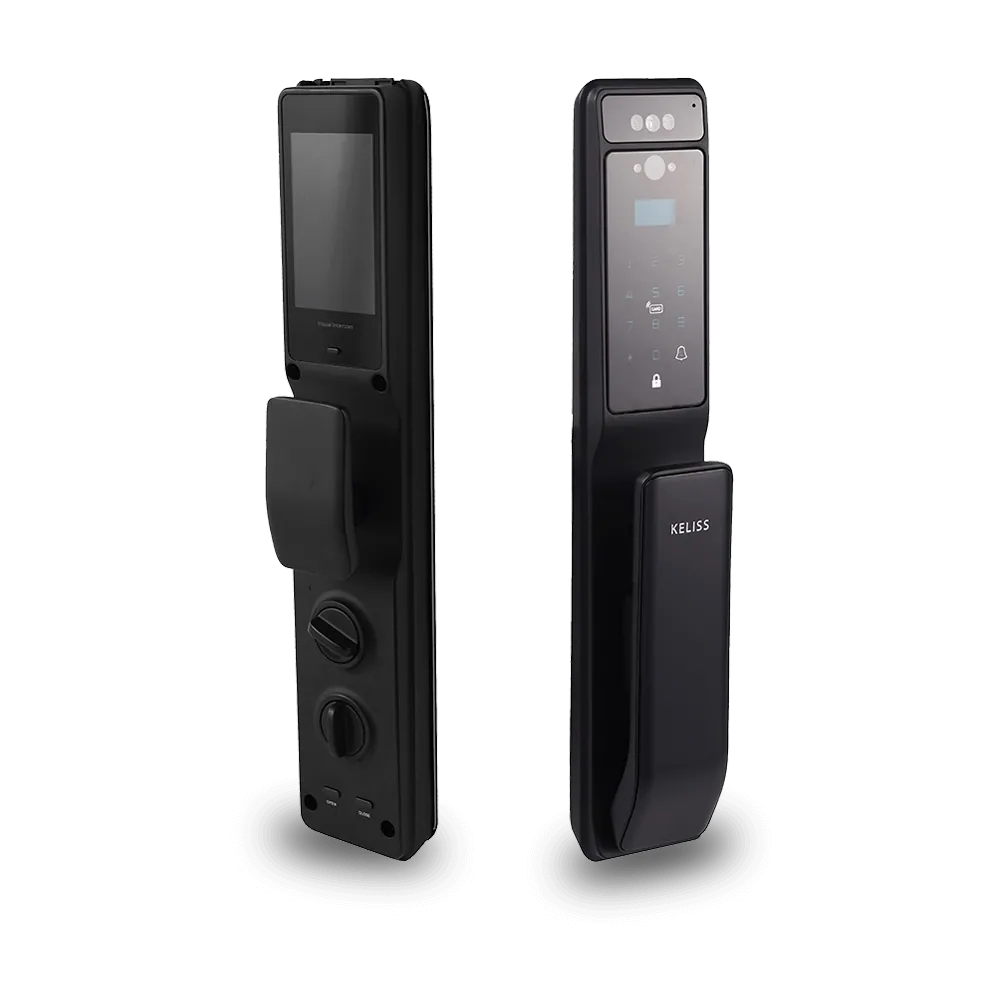

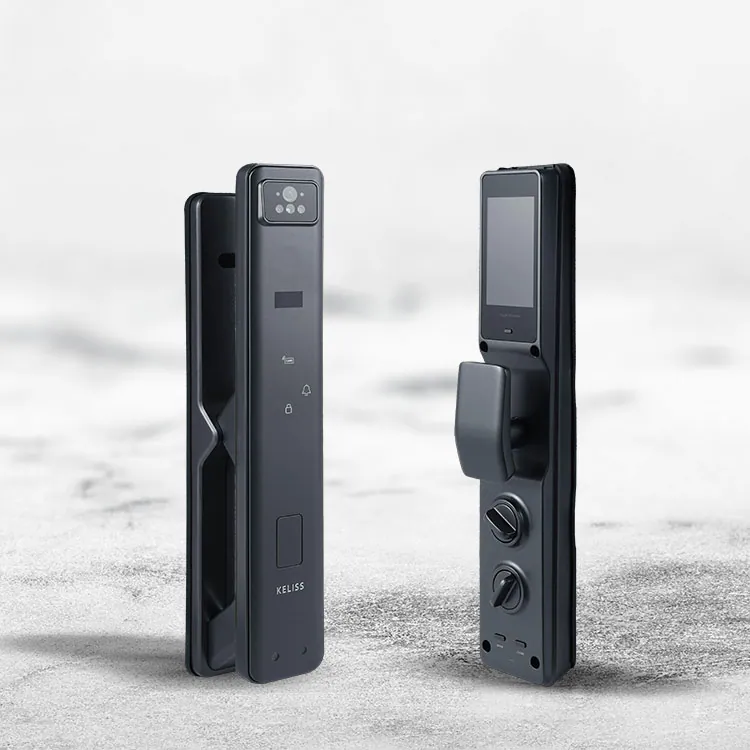

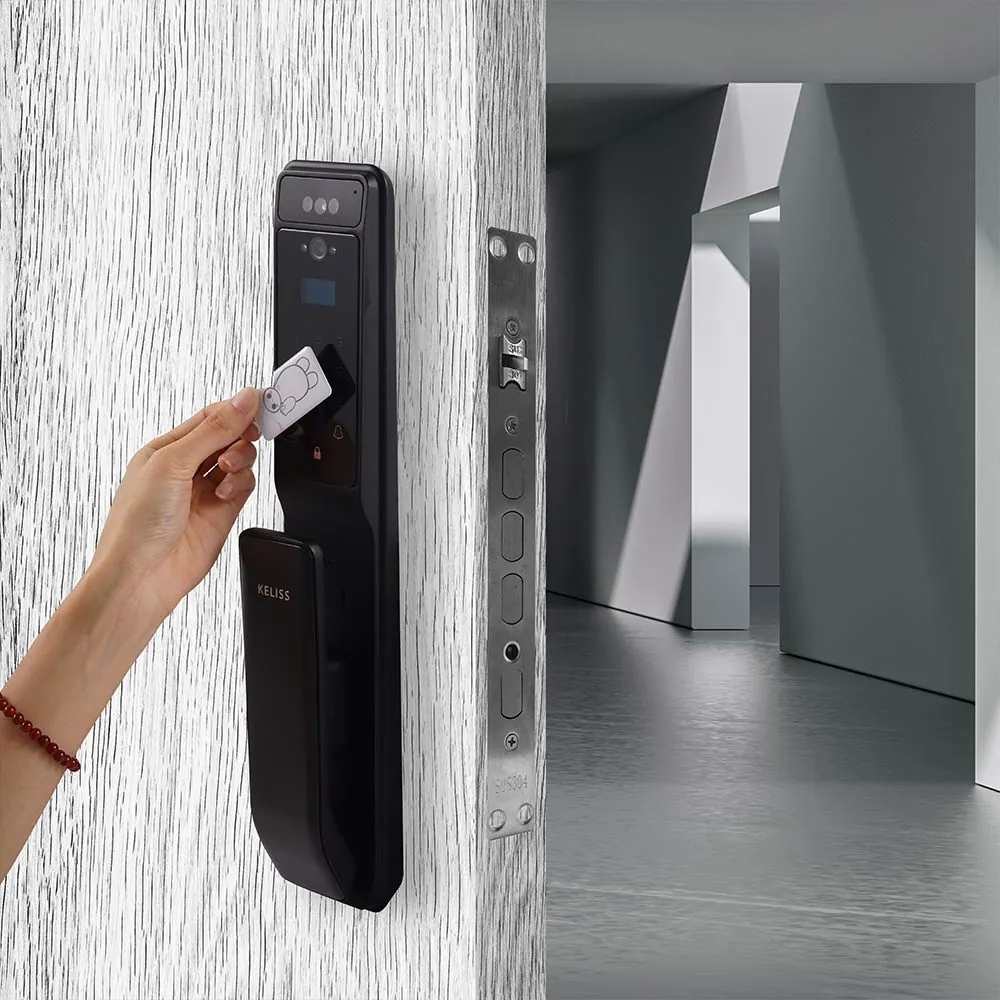

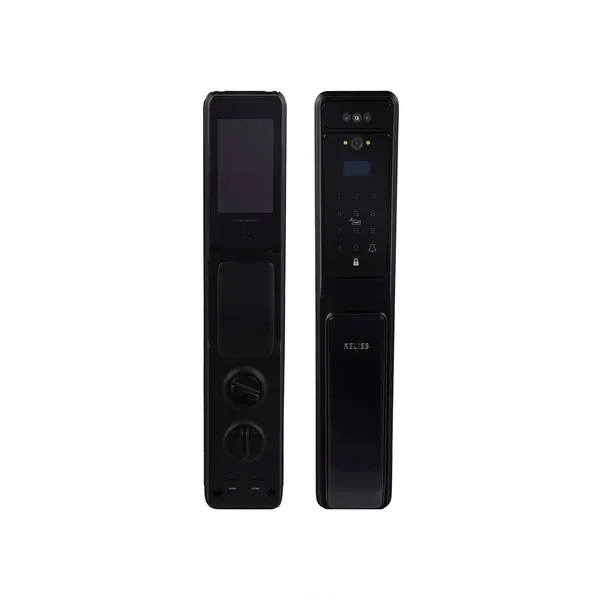

The Eikona EK06 is a black aluminium alloy smart lock with 3D face recognition, audio and video intercom and a wide-angle 1080P HD camera. The built-in camera records visitors even at night, and the motion sensor and digital peephole complete the surveillance of the door. It also opens with fingerprint, anti-peep code, card, mechanical key and the Tuya app, and is powered by a 5000mah rechargeable lithium battery.
- Several unlocking methods
- Anti-peep code
- USB Type-C port and mechanical keys for opening with a flat battery
- Audio and video intercom
- Wide-angle 1080P HD camera
- 3D face recognition
- Digital peephole
- Motion sensor
- Doorbell
- Automatic locking
- One-touch locking
- One-time codes
- Touchscreen that wakes on touch
- Alarm after incorrect unlocking attempts
- Anti-tamper alarm
- Low-battery warning
- Long-life battery
Technical specifications
Materials and finishes
- Material
- Aluminium alloy
- Colour
- Black
Unlocking and access
- Fingerprint sensor
- Semiconductor
- App
- Tuya
- Face recognition distance
- 40 - 90cm
- Administrators
- 10
- Users
- 90
- Memory capacity
- 100 fingerprints, 100 codes, 100 IC cards, 100 faces
- False acceptance rate
- ≤ 0.0004% (fingerprint); < 0.00004% (face recognition)
- Voice guidance
- No
Installation

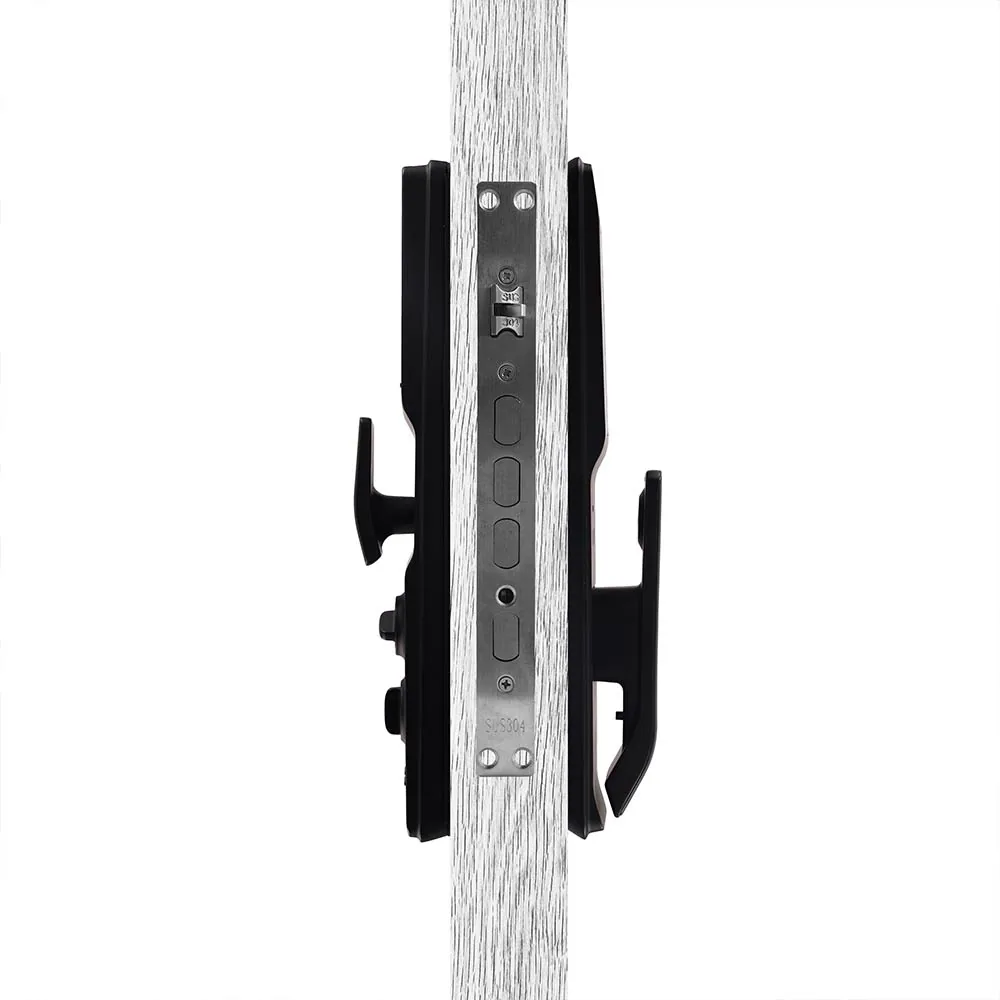

- Lock body
- 6068
- Lock body material
- 304 stainless steel
- Door type
- All doors except glass doors
- Door thickness
- 40 - 120mm
Power supply and operating conditions
- Operating voltage
- DC 6.5V - 8.4V
- Power supply
- 5000mah rechargeable lithium battery
- Operating temperature
- -20℃ - 60℃
- Operating humidity
- 20% - 93% RH
Packaging
- Package dimensions
- 455 x 140 x 255mm
- Package weight
- 4.3kg
Documents
The other models in the series
What changes compared with the Eikona Series – EK06, according to the manufacturer's data sheets.
- Eikona Series – EK01Not stated on the data sheet: intercomPower supply 4200 mAh rechargeable lithium battery; material galvanised zinc alloy
