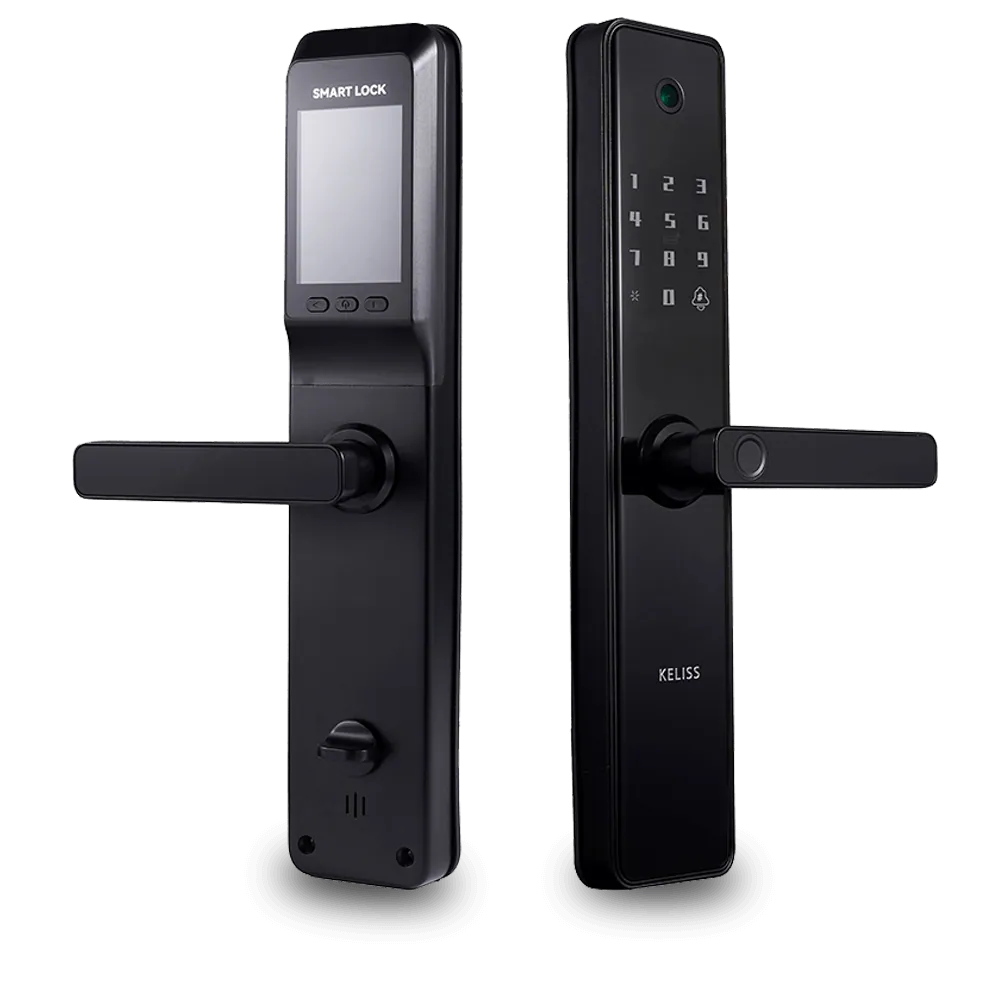

Astra series · Model AT010
Astra Series-AT010
Smart lock with built-in camera and digital screen

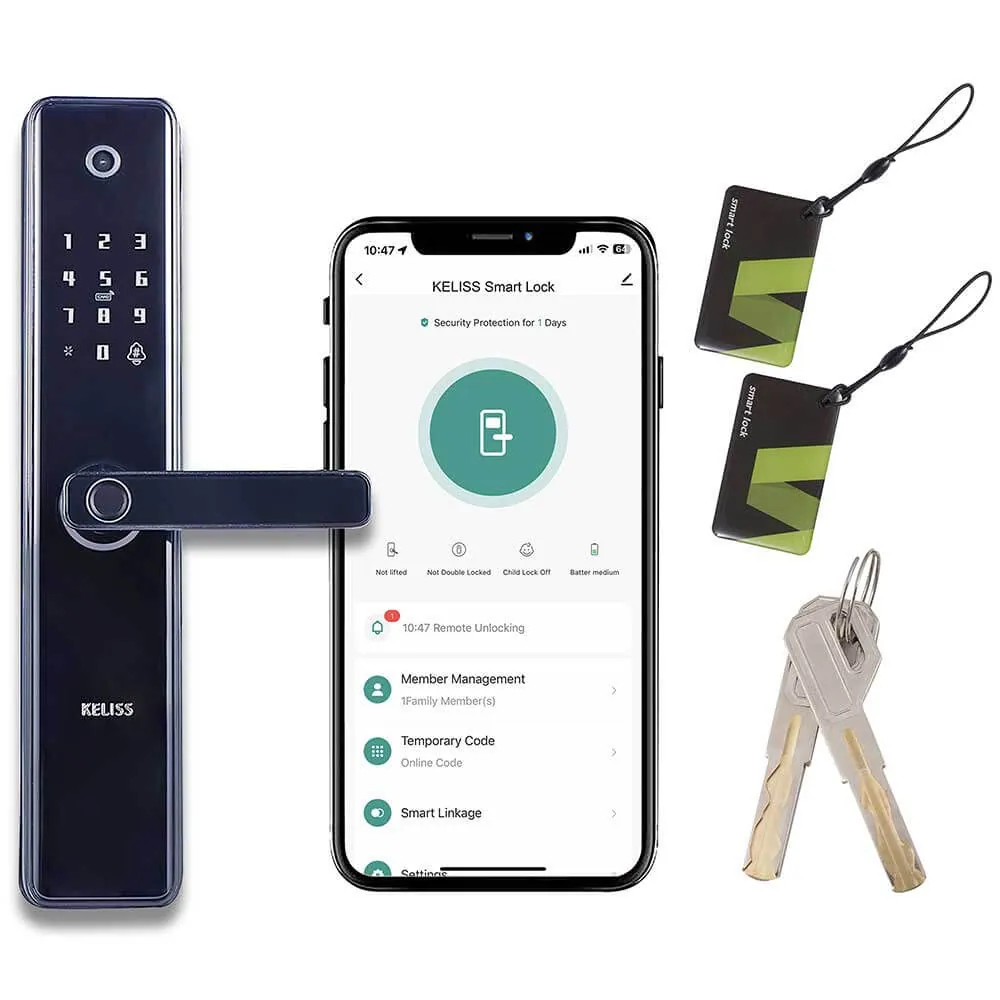

The Astra AT010 is a smart lock with a black aluminium alloy body that opens with fingerprint, keypad code, IC card, mechanical key or remotely from the Tuya app. The built-in camera takes photos of anyone interacting with the lock and the app sends real-time notifications. The digital screen wakes on touch; when the battery is flat, the lock can be powered from a power bank connected to the USB Type-C port, or opened with the hidden mechanical key.
- Several unlocking methods
- USB Type-C port and mechanical keys for opening with a flat battery
- Sharp digital screen
- Doorbell
- One-time codes
- Built-in camera for taking photos
- Automatic locking
- Touchscreen that wakes on touch
- Alarm after incorrect unlocking attempts
- Anti-tamper alarm
- Voice low-battery warning
- Long-life battery
Technical specifications
Materials and finishes
- Material
- Aluminium alloy body
- Colour
- Black
Unlocking and access
- Unlocking methods
- Fingerprint, keypad code, IC card, mechanical key, remote control from app
- App
- Tuya
- Administrators
- 9
- Memory capacity
- 200 (fingerprints, codes and IC cards)
- Fingerprint sensor
- Semiconductor
- Unlocking time
- ≤ 0.5sec
- Voice guidance
- Yes
Installation
- Door type
- All doors except glass doors
- Door thickness
- 35-110mm
- Lock body
- 6068
- Lock body material
- 304 stainless steel
Power supply and operating conditions
- Power supply
- 8 AA batteries
- Operating temperature
- -25℃ - 60℃
- Operating humidity
- 20% - 90%RH
Packaging
- Package dimensions
- 450 x 140 x 225mm
- Package weight
- 4kg
Documents
The other models in the series
What changes compared with the Astra Series-AT010, according to the manufacturer's data sheets.
- Astra Series – AT011In addition: for outdoor useNot stated on the data sheet: cameraDoor thickness ≥ 38 mm; power supply 4 to 8 AA batteries; colour matt coffee brown
